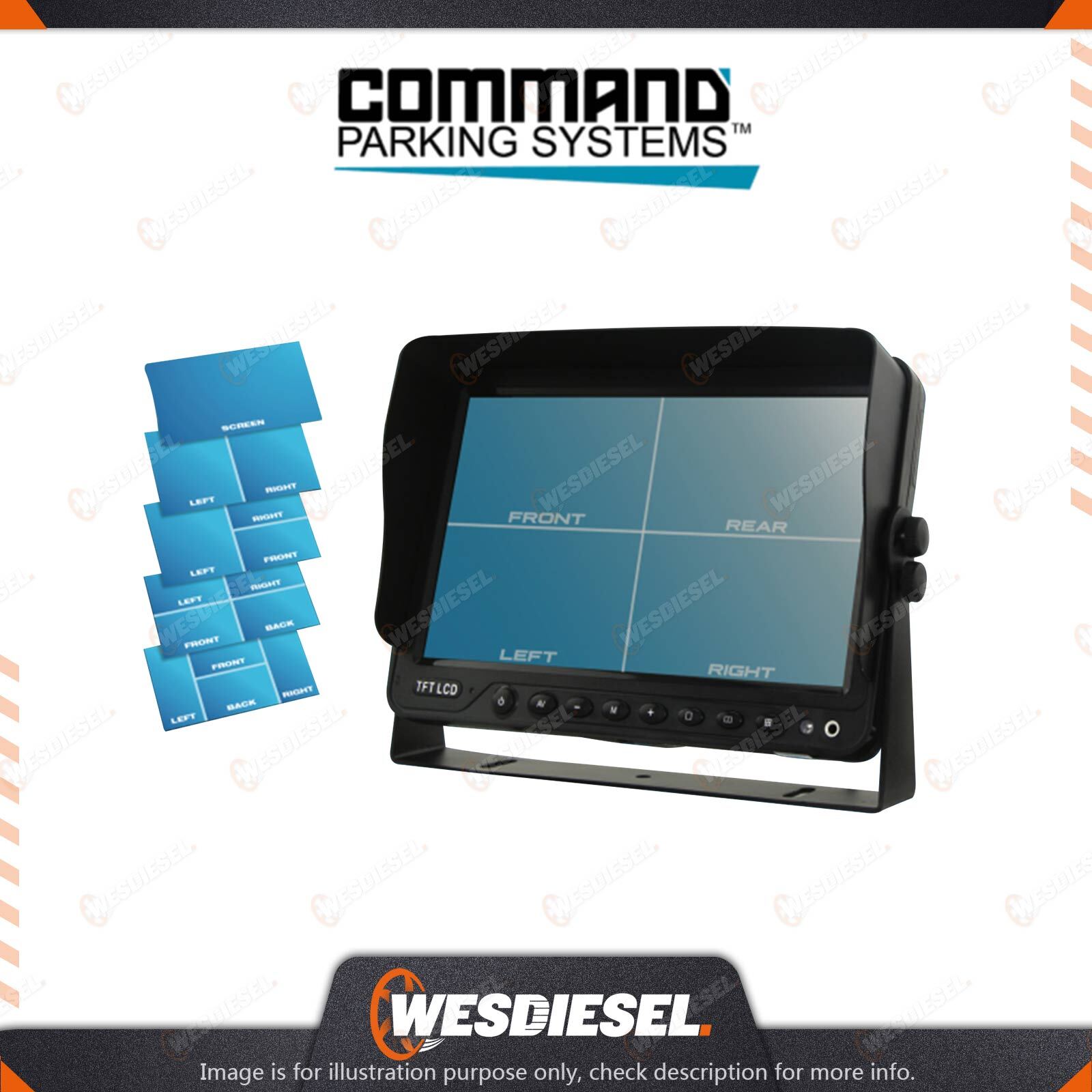

Command 7 Inch Quad Heavy Duty View Monitor Large 4 pin 180mm x 125mm x 40mm
Command Parking Systems™ 40 years of extensive experience in the automotive aftermarket including provision of Some of the best electronic products available
Features :
- Large 7" HD Display ¨C Designed for modern vehicles needing a bigger screen.
- Dual Camera Input ¨C Supports two cameras with audio capability.
- Automatic Display Activation ¨C Single video trigger wire for seamless image switching.
Description:
The Command 2nd Gen Heavy Duty 7" Monitor has been designed to offer those who require a larger screen for modern vehicles, with two cameras going to a single image display. Features include two video inputs - both audio capable, a single video trigger wire to automatically display the required image without the need to press a button.
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2025 Wesdiesel. All rights reserved.
Brand : Command
Contents :7 Inch Quad Heavy Duty Monitor
The Command 2nd Gen Heavy Duty 7” Quad View Monitor has been designed for a range of applications where multiple cameras are required and more than one image needs to be seen at any given time. 4 video inputs,all audio capable,are included with a video trigger wires for each input to automatically display the required image without the need to press a button. Multi-volt ¨C 12V-32V.
2 x video/audio inputs ¨C heavy duty large 4 pin style.
Features:
On/Off,Brightness,contrast,colour,volume,language,AV select,image rotation,aspect ratio,av scroll,auto trigger,auto brightness,trigger timing,sleep timing.
Multi volt,auto brightness control,trigger delay options,grid line overlay.
Screen size: 7 inch (diagonal)
Signal type: PAL/NTSC (auto-switch)
Resolution: 800 x 480
Inputs: 4 x Audio/video in
Connector type: arge 4 pin
Power supply: 9-32v
Reverse trigger: Trigger for V2
Mounting type: -support bracket,swivel mount and flush mount brackets available separately
Sun shield: Yes ¨C removable
Speaker: Yes
Dimensions: 180 m (W) x 125mm (H) x 40mm (D)

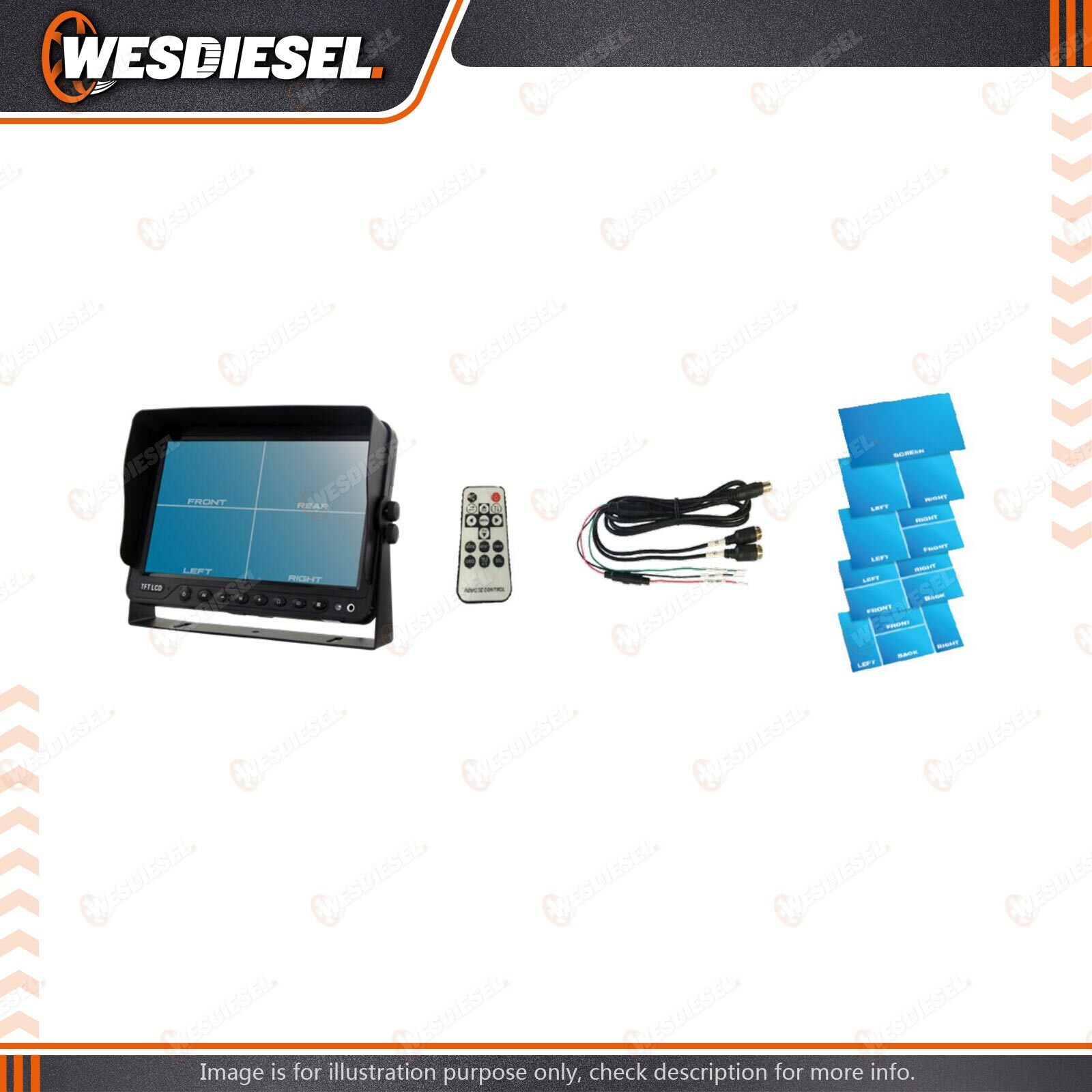

Includes: 7 inch screen,u-support bracket,mounting bolts,power/AV harness,removable sun shield,remote control.
| SKU | Command91-W2302-AG124 |
| Brand | Command |
